Parley: Building on the sample

Parley is a messenger, and most of what makes one isn’t in the server. The server stores and relays ciphertext it can’t open; the keys, the sessions, the encryption and the history are in the app. Parley kept what it shares with Wayline and Savor: the module layout, the accounts and sign-in, text messages, push notifications, the live channel, the operations console and hosting the app in a browser. This chapter covers what a messenger changes. For the parts the samples share, it points at the Wayline chapter, which is true of Parley with the names swapped.

The project is in scripts/parley, and the Initializr generates it under your own package and name. Start the server on the development profile, which seeds the demo accounts and conversations and prints text messages on the console:

Then run the app in the simulator, from the project’s directory:

backend/server.sh run --web builds the app for a browser as well and serves it at http://localhost:8080/. Running on a device, and the compiled server, work as Running it describes.

The three modules are Wayline’s: shared holds the contract, the data transfer objects and the @RestClient interfaces both sides compile against; common is the app; backend is the server. The app’s packages are crypto (keys, sessions and the encrypted vault on the device), chat (sending, receiving and calls), store (the history), live, net, notify, admin and ui. The backend’s follow the domain:

The server’s rules are in one table, with the admin console behind the admin role and everything else behind a signed-in account:

Parley follows Signal’s two published specifications, X3DH to start a session and the Double Ratchet to carry it, over the primitives Codename One has on every port. Where Signal uses X25519 for the Diffie-Hellman steps, Parley uses P-256, which the platforms provide natively; it derives keys with HKDF-SHA-256 and encrypts messages with AES-256-GCM. The pieces are in the crypto API: KeyGenerator.ec(256), KeyAgreement.ecdh, Hkdf.derive, Cipher and Hmac, and Signature for the prekey’s signature.

Each device is its own identity. It makes three kinds of key, once, and keeps the private halves in the Vault:

The device publishes the public halves to device/Devices, which checks the signature. That check doesn’t make the server trusted: a server that wanted to lie would swap the identity key too, which is what the safety numbers catch.

To write to a device it hasn’t talked to, the sender fetches that device’s prekey bundle. The server hands out, and so deletes, one of the one-time prekeys. The sender combines its identity key and a fresh ephemeral key with the bundle’s identity key, signed prekey and one-time prekey — three or four ECDH results, joined and run through HKDF — into a root key, and the first message carries what the receiver needs to repeat the computation. The receiver can be offline, and the first message is still forward secret. After that the Double Ratchet takes over: every message moves a symmetric chain forward, every reply a Diffie-Hellman step, so a key that leaks opens neither the past nor, once a reply has been exchanged, the future. Messages that arrive out of order open from skipped keys the ratchet keeps, and a header that claims an absurd number of lost messages is refused.

crypto/Sessions keeps one session per remote device, plus the one before it. Two devices that start a session with each other at the same moment each end up with two; the earlier one opens whatever the other side sent on it. The same happens when a contact reinstalls: the new device’s first message starts a new session, and messages still in flight on the old one still open.

A message is a JSON payload — kind, text and a media reference — that’s encrypted for each recipient device. The server sees an envelope: who sent it, which device it’s for, a header, a ciphertext and a time. It never sees a payload. The ciphertext is limited to 64 KB, which is why attachments travel apart from it.

There is no group key. A message to a group is encrypted once for every device of every member, and once for each of the sender’s other devices, so that they show what was sent. The client sends all the copies in one request, and the server checks that they cover exactly the devices it knows, so that a message can’t skip a device. A group of 256 people on up to six devices each is a lot of copies, which is the price of having no state to keep in step: adding a member needs no rekey, and a removed member simply stops being addressed.

chat/Fanout stores each envelope and sends it over the live channel to the device it’s for. An account with no device connected gets a push that carries nothing: it only wakes the app, which fetches what’s waiting over its own connection. An envelope is deleted when its device acknowledges it, and one nobody fetches is kept for 30 days. Delivery is at least once: an envelope is stored before it’s sent live, so a device can see it twice, and the app remembers the ids it has seen. Typing indicators and call signals go live only and are never stored.

Linking a device is signing in on it. The server lists the account’s devices, up to six, and the app on every one of them encrypts for the others. Unlinking one deletes its keys and the envelopes waiting for it, which nobody else could read. A safety number is computed from the two identity keys and usernames, hashed a thousand times, and is shown as sixty digits. It follows the shape of Signal’s but its iteration count and version byte are the app’s own, so the numbers don’t match Signal’s.

A photo, a video or a voice note is encrypted on the device with a fresh AES key, and the ciphertext is uploaded to chat/Media. The upload answers an id of 128 random bits. The id, the key and a digest of the ciphertext go inside the message, so only the message’s recipients have the key. The server stores bytes it can’t read for anyone who presents the id, up to 16 MB, and the receiver checks the digest before it opens anything: an attachment changed on the way isn’t opened. Profile and conversation photos are the one exception, because the server has to hand them to people who haven’t been sent a message.

Keys, sessions and message history are JSON documents in Storage, each sealed with AES-GCM under a vault key that lives in the platform keystore (SecureStorage: the Keychain, the Android Keystore). A copy of the app’s files holds nothing readable without that key, and signing out deletes it, which turns the files into noise. Each account on a device has a vault of its own, named by a hash so that the file names don’t say whose they are. App lock, screen security and the privacy settings that the app enforces itself — read receipts, typing — are in ui/Privacy and Prefs; last seen and the profile photo are enforced by the server, which is what hands them out.

The timer is a setting of the conversation, in seconds, that the server keeps and every member’s phone reads. A message in a conversation with a timer is stamped with the time it vanishes, counted from when it was sent: the server stamps the envelopes it stores, and each phone stamps its own copy and deletes it then. An envelope that’s still waiting when its time comes is deleted on the server too (EnvelopeRepository.expire), so a phone that was offline for longer than the timer never receives it. A timer can’t take back what a recipient already copied, and the user’s guide says so.

A call is two apps and a relay. The server never touches the media: it rings the callee, relays the signalling, and hands out the addresses of the servers through which the apps reach each other. The media itself is WebRTC’s, encrypted with DTLS-SRTP between the two devices.

The app owns the signalling, which is how com.codename1.webrtc is meant to be used (the WebRTC chapter). call/Calls starts and ends a call and passes along six signals as call frames on the live channel: OFFER, ANSWER and ICE carry WebRTC’s own text, and ACCEPT, DECLINE and END move the call through its states:

The caller opens its camera and microphone and sends the offer at once, so the callee’s phone already holds it when the person answers. A candidate that arrives before the description it belongs to waits for it. A call nobody ended is closed by a sweep after it has been ringing too long, or running for hours.

Where the platform has a system call screen the call is reported to it as well: CallKit on iOS and the ConnectionService on Android, through com.codename1.call. The call rings on the lock screen, shows in the phone’s call log, and the system’s answer and hang-up buttons drive the same steps as the app’s. A VoIP push rings a phone the app isn’t running on. The pieces are in chat/Calls in the app and push/MessagePushes on the server.

Most calls find a direct path with only STUN. A call between two phones on mobile networks often doesn’t, and needs a TURN server to relay the encrypted packets. The server doesn’t run one. It hands each caller the addresses of yours, with a credential that expires, so nothing about the TURN server is kept in the app:

parley.ice.secret is the secret shared with the TURN server — coturn’s static-auth-secret, with use-auth-secret on. Calls.ice builds the credential the way coturn checks it: the username is the expiry time and the account, and the password is the HMAC-SHA1 of the username under the secret. Nothing is stored, and a leaked credential stops working on its own after parley.ice.ttl seconds. With no TURN server set, only STUN is handed out, and calls between networks that block a direct path fail. The default STUN server is a public one; run your own for a service of your own.

A group or a channel can be linked to a Telegram group or a WhatsApp number. What a Parley member writes goes out to the linked chat, and what’s written there comes in and is posted into the conversation. Each bridge is off until the server has its credentials:

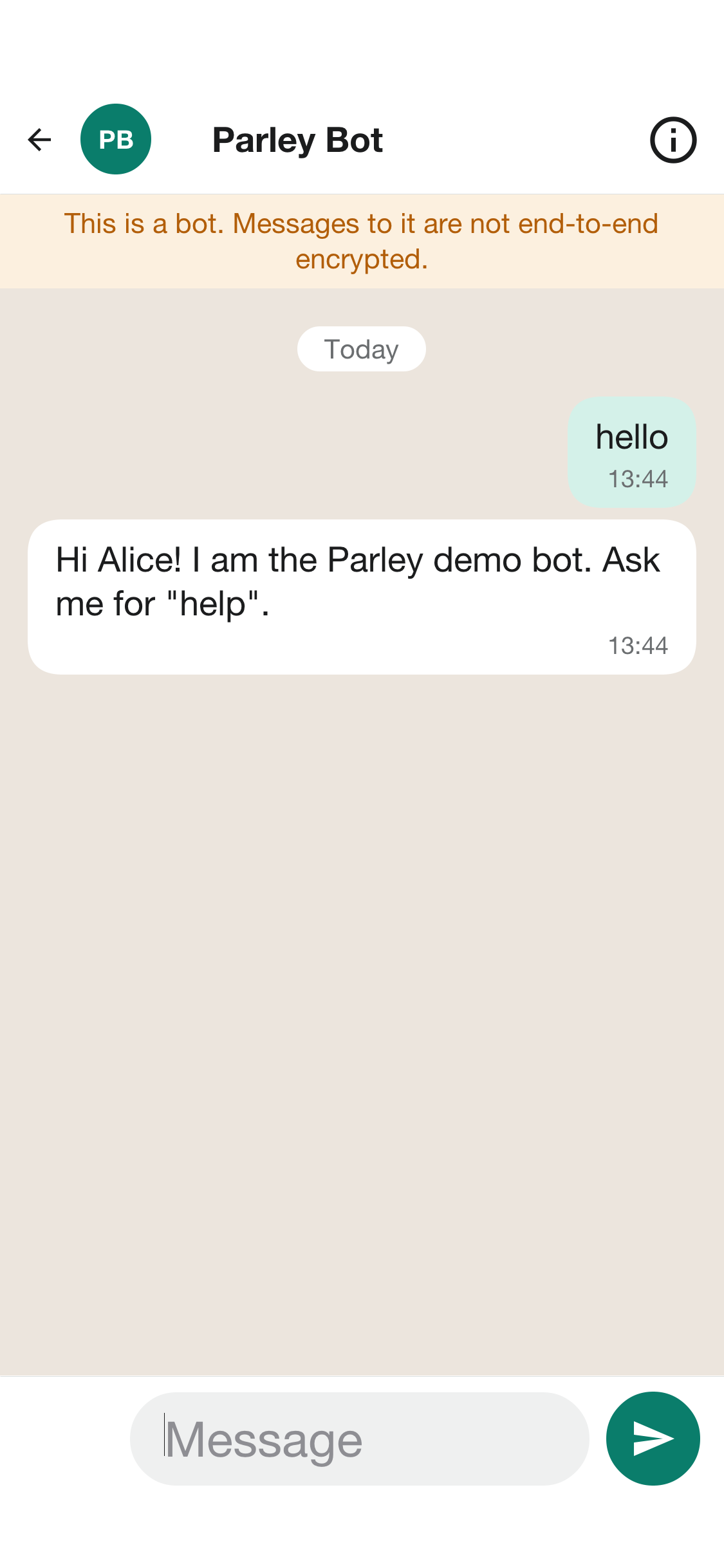

To carry a message across, a bridge has to read it. A bridged conversation is therefore not end-to-end encrypted: its members' apps send it to the server in plain text, so that the server can pass it on. The sample doesn’t hide this. Only a group’s owner or one of its admins can link it, the link is announced in the group so that everyone learns, in a notice they can’t miss, that from now on what they write there leaves Parley in plain text, and every member’s app marks the conversation as not end-to-end encrypted. The chat with the demo bot is marked the same way, for the same reason. The administrator’s Bridges screen lists every link.

Plain text on the server is also plain text in the other network, under that network’s own rules about what it keeps. Decide whether your service wants bridges at all; leave them unconfigured and the feature isn’t offered.

The console is built on the operations console’s Console, so it’s a list beside a detail on a wide screen and a list that opens a screen per item on a phone. The statistics count what the server can see — accounts, messages, kinds of conversation, the busy hours — and nothing it can’t. A report is the only way content reaches an administrator, and it carries only what the reporter’s own phone chose to attach.

These are Wayline’s, with the names swapped: the accounts and the sign-in (Who may do what), text messages (Text messages) with the providers parley.sms.provider names, push (Push notifications) with parley.push.provider, the database (The database) and hosting (Hosting it: A managed database and one binary). One difference matters here: a Parley push never carries a message, it only wakes the app, which fetches and decrypts on the device, so the push provider never learns what anyone said.

The backend tests run the server on the JVM and then compiled, against the envelope and device rules, the calls' states, the bridges and who may call what. run-e2e.sh starts a server on the test profile and drives the app in the simulator against it. run-web-e2e.sh does the same for the app in a browser, linked as a device.

The ways to make Wayline your own apply here too: the name, icon and colors, the languages, the text-message and push providers, the database, hosting. A few apply to a messenger in particular:
